Product Introduction

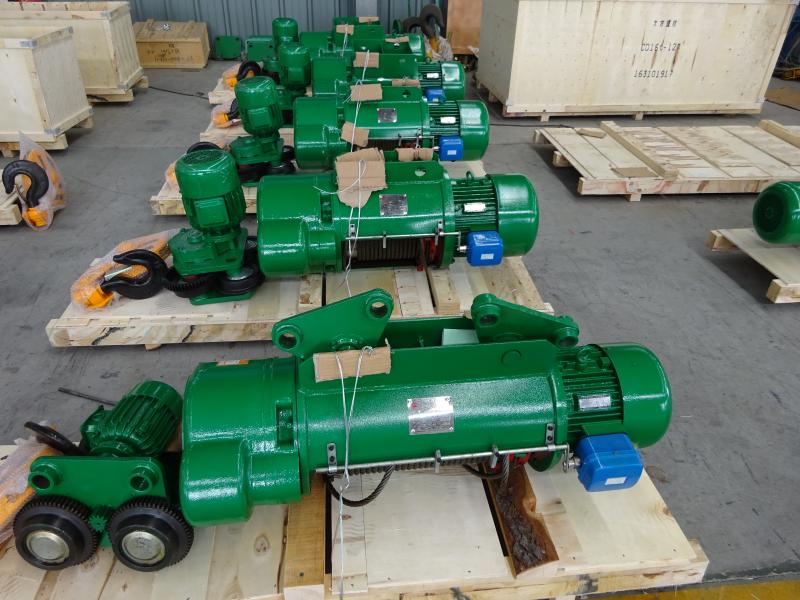

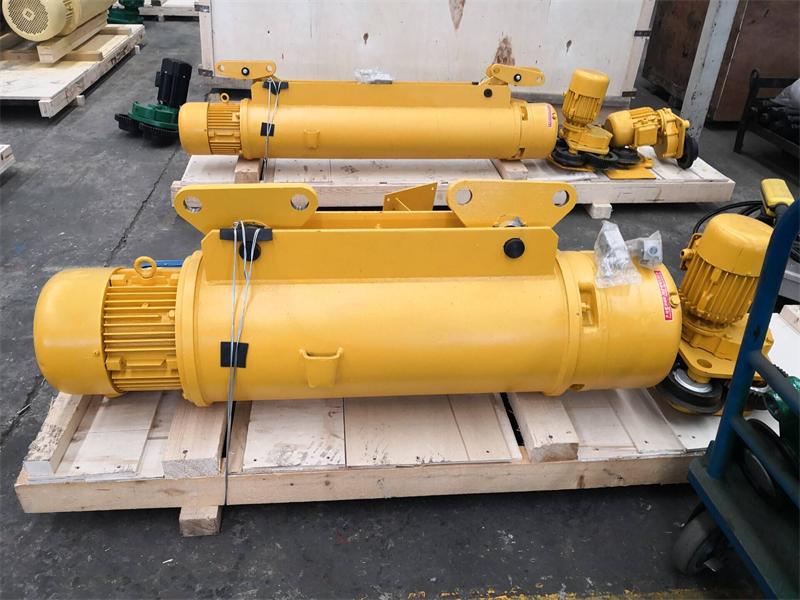

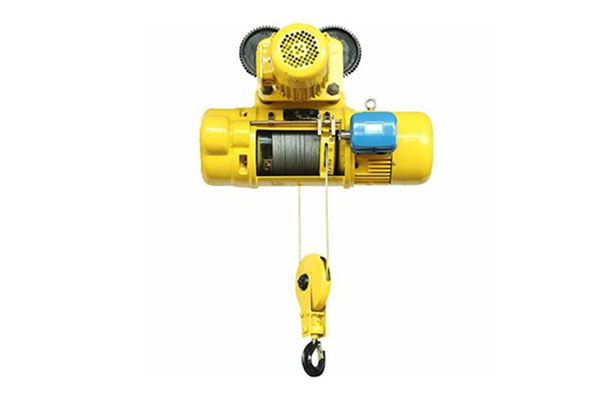

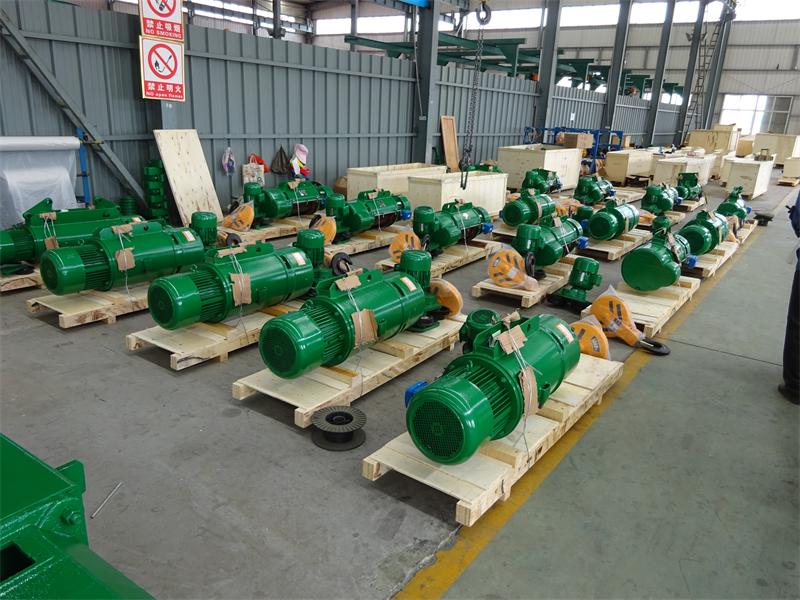

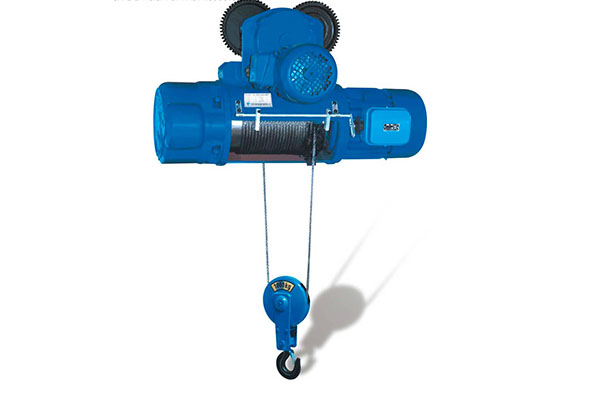

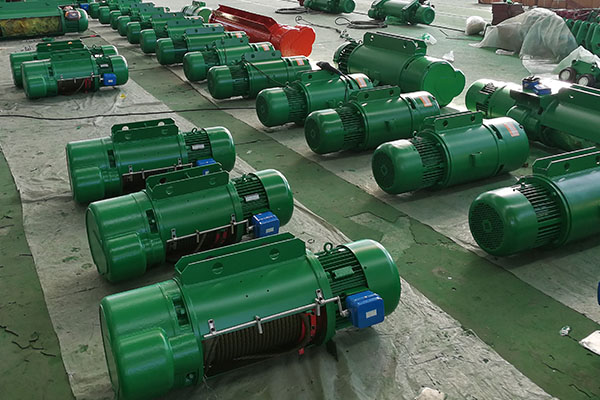

Electric wire rope hoist is a small light lifting equipment, widely used to lift, loading and unloading, repair equipment, hoisting goods, install on a suspended I-steel, curve track, jib crane rail and fixed lifting hoisting heavy weights.

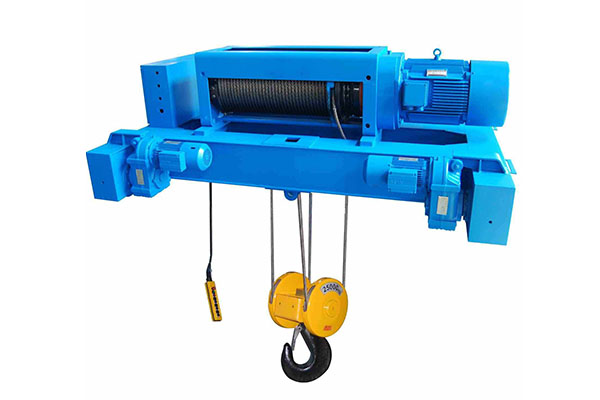

Electric wire rope hoist can be classified into electric wire rope hoist with electric trolley, electric wire rope hoist with manual trolley, suspended hook electric wire rope hoist ,low headroom electric wire rope hoist.
Product Advantages
- Compact structure, light weight, safe and reliable;
- Components and parts apply used universally, strong compatibility;
- High lifting capacity, easy to maintenance;
- Easy operation, accurate lifting steady operation.
Safety Protection
Lifting limit switch
Prevent the hook out of control when it has been lifted to the top position
Traveling limit switch
Stop the crane traveling smoothly when travel to the rail ends
Overload limiter
Prevent for the overload
Wire rope guide
Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping
We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices
Technical Data
Technical Parameter of CD/MD electric wire rope hoist
| Capacity | t | 3 | 5 | 10 | 16 | 20 |
| Lifting height | m | 6~30 | 6~30 | 6~30 | 6~30 | 6~30 |
| Lifting speed | m/min | 8 8/0.8 | 8 8/0.8 | 7 7/0.7 | 3.5 3.5/0.35 | 3.5 3.5/0.35 |
| Traveling speed | m/min | 20 | 20 | 20 | 20 | 20 |
| Work duty | A3 | A3 | A3 | A3 | A3 | |
| Track type | I 20a-32c | I 25a-50b | I 32b-50b | I 32b-63C | I 56a-63c |
FAQ
- Q1:What object to lift ? applications and working environment ?
- Q2:Lifting capacity:__ton?
- Q3:Lifting height (H):__ m ?
- Q4:Span (S):__m ?
- Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
- Q6:Control mode: pendant control, remote control or cabin control ?
- Q7:Power source: AC 3Phase __V / __Hz ?
