Product Introduction

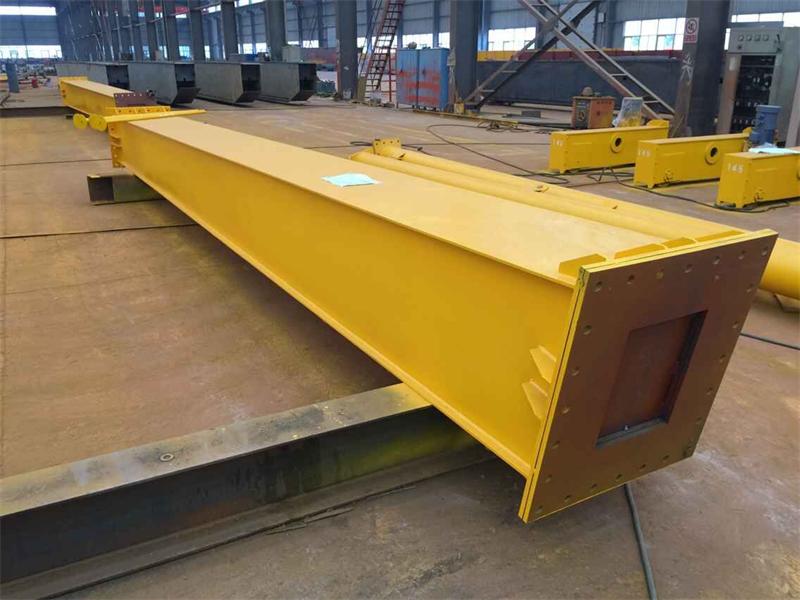

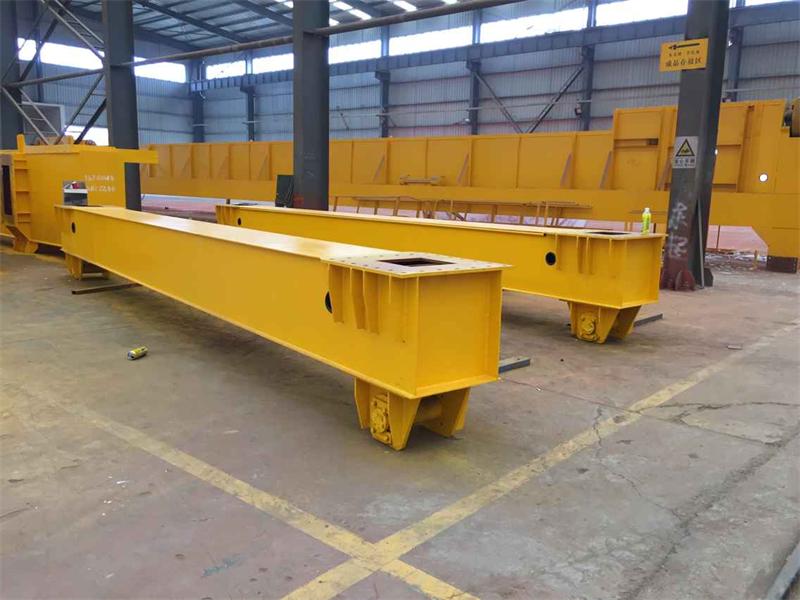

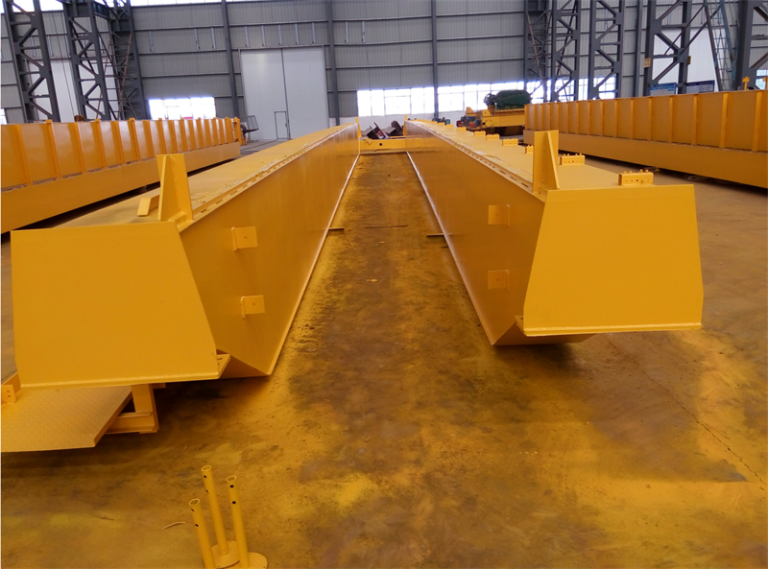

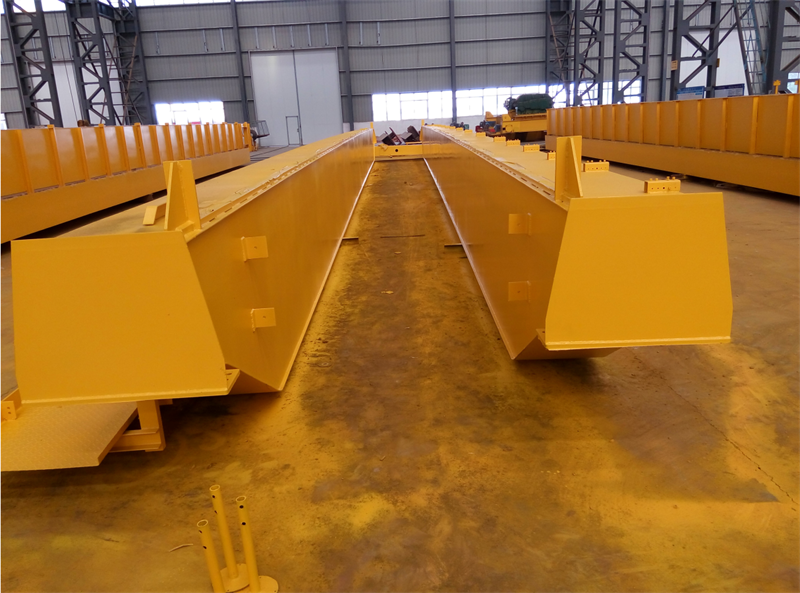

Semi Gantry Crane is widely used in the open yard, one side traveling on the top running rail fixed besides the warehouse and the other side traveling on the rail fixed rail. According to different lifting capacity range, it divided into single girder semi gantry crane and double girder semi gantry crane.In the lower part of the main beam, there is a leg and insulation on the lower beam. The design and manufacture of crane meet the State Administration of Quality Supervision, inspection and quarantine of the quality of writing“2007”document No. 375, lifting other molten metal items and hot solid metal location can also refer to the selection.
Product Advantages

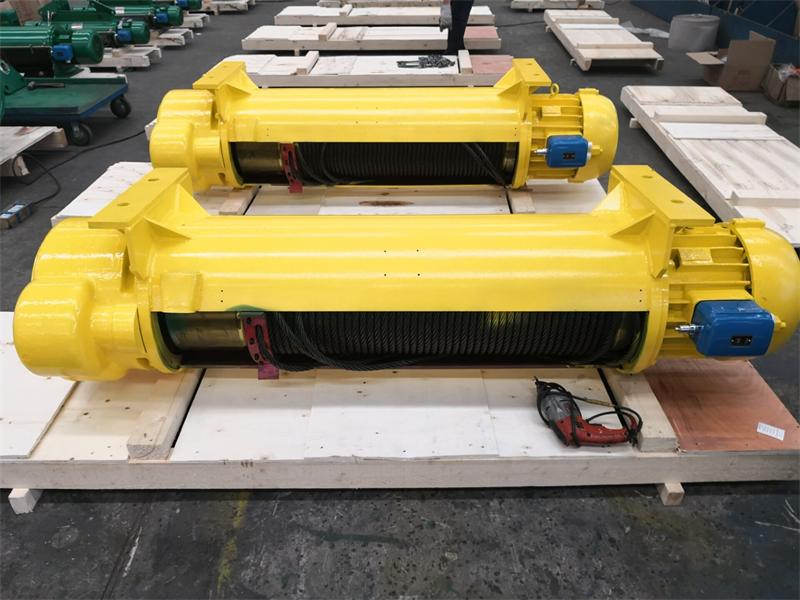

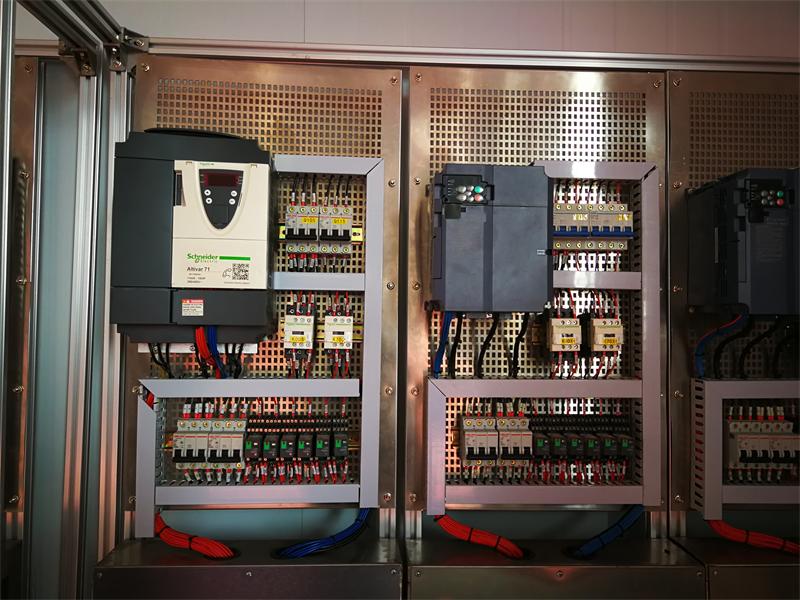

- European Semi Gantry Crane is equipped with high performance engines, ABM brand, Schneider brand electrical components, variable speeds, box girder design, light pressure electric lifting trolley. Low noise, free maintenance, light weight, good-looking, most popular used in the open yard;

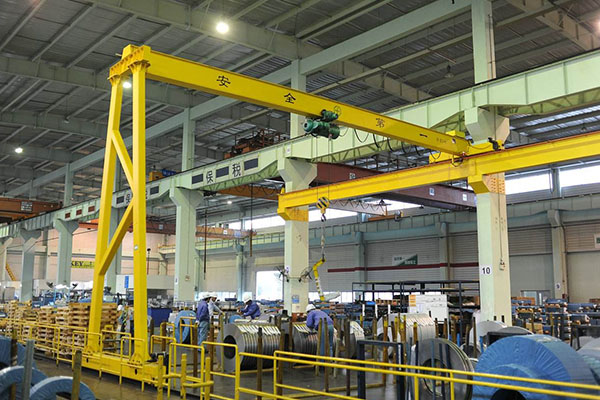

The single girder semi gantry crane is a general purpose light crane used in workshop or outdoors. The leg height of this single girder semi-gantry crane can be different according to the engineering needs on the construction field. The single girder semi gantry crane has the features of simple structure, easy installation, light weight, good wind resistance.

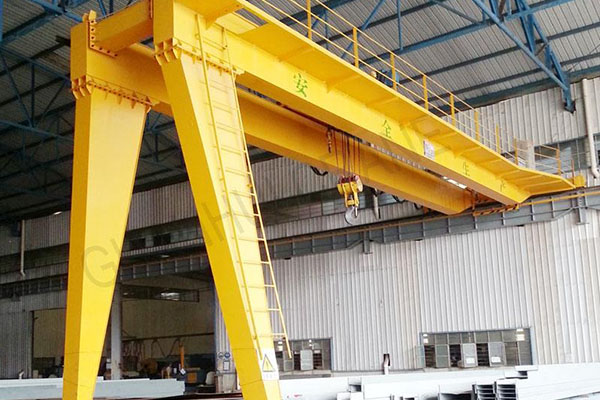

The double girder semi gantry crane is combining the advantages of the full gantry crane and overhead crane. It is widely applied to do loading and unloading work in indoor or outdoor.
Safety Protection
We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices
Technical Data
| Capacity | t | 5 | 10 | 16 | 20 | 32 |
| Span | S(m) | 10.5~35 | 10.5~35 | 10.5~35 | 10.5~35 | 10.5~35 |
| Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
| Lifting speed | m/min | 12.5 | 8.5 | 7.9 | 7.2 | 7.5 |
| Trolley speed | m/min | 37.2 | 43.8 | 44.6 | 42.4 | 42.4 |
| Crane speed | m/min | 37.7 | 37.7 | 40.1 | 40.1 | 38 |
| Work duty | A4~A5 | A4~A5 | A4~A5 | A4~A5 | A4~A5 | |
| Track type | P38 | P38 P43 | P43 QU70 | P43 QU70 | P50 QU80 |
FAQ
- Q1:What object to lift ? applications and working environment ?
- Q2:Lifting capacity:__ton?
- Q3:Lifting height (H):__ m ?
- Q4:Span (S):__m ?
- Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?

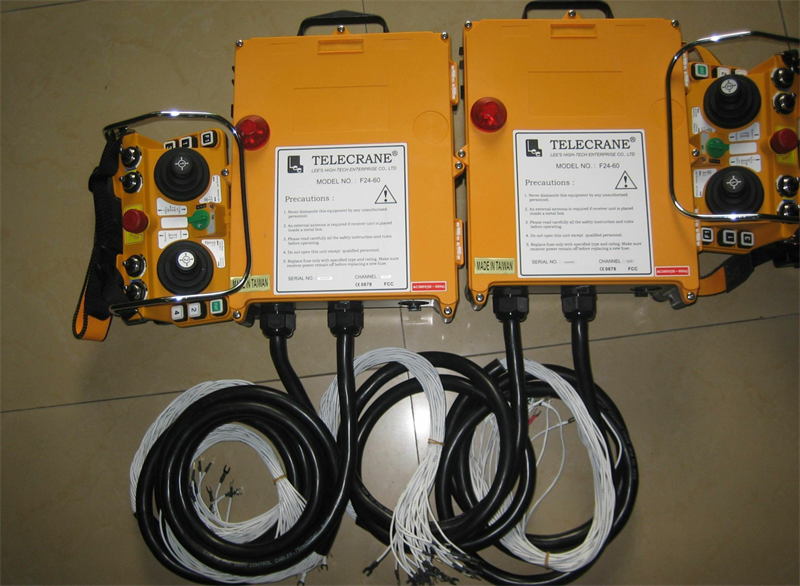

- Q6:Control mode: pendant control, remote control or cabin control ?
- Q7:Power source: AC 3Phase __V / __Hz ?
