Product Introduction

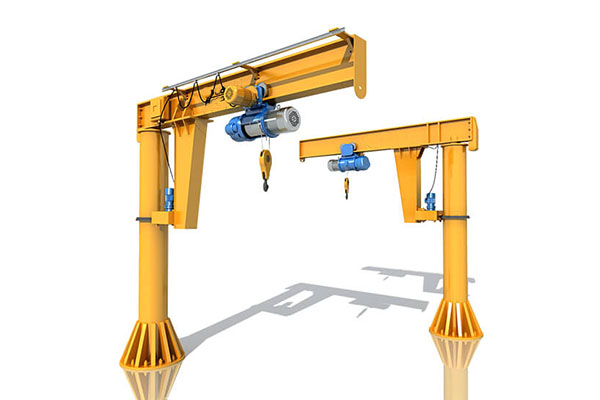

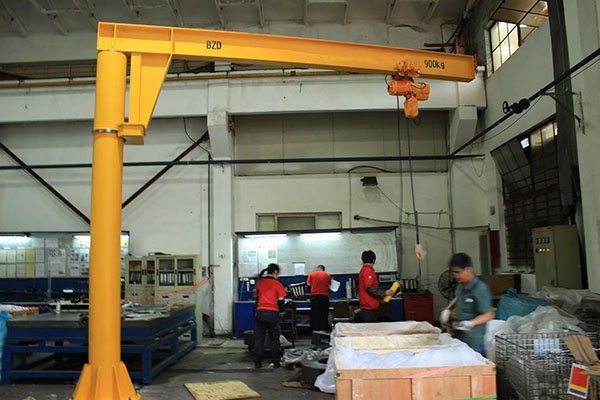

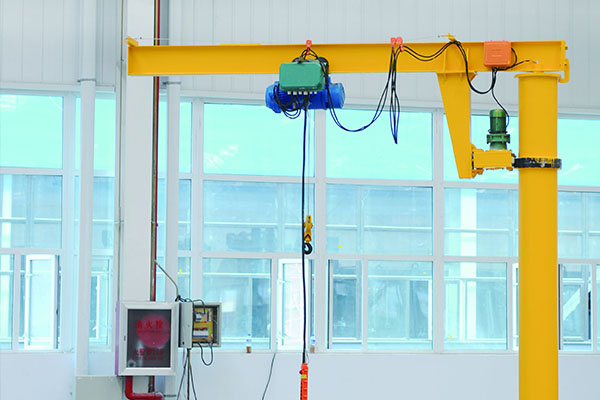

Pillar Jib Crane is widely used in machining workshop, product storage and dispatch warehouse, plastic injection molds changing, finished steel product industries, especially in the production lines, column mounted jib crane a type of crane that uses a mounted arm to lift, move and lower material. The jib crane installed and fixed on ground. The arm, mounted either perpendicular to or an acute angle upwards from a column(pillar), may rotate along its central axis through a limited arc or a full circle. This kind of jib crane is composed by column, beam, rotation structure , electric hoist and fixing parts, etc..
Product Advantages
- Free Standing column mounted on concrete foundation, erection and assembly and operation easily.
- Pillar Jib Crane can rotate 360, 270 and 180 degree, matched with electric wire rope hoist or electric chain hoist.
- Take up small space, easy installation and operation, simple structure, it is a perfect handling equipment used in small workshop.
- Customized design for clients:Customized design according to the workshop or column size to satisfy clients’ different demand. Clients also can choose their favorite color for the jib crane.
Safety Protection
We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices
Technical Data
| Capacity | t | 1 | 2 | 3.2 | 5 | 10 | 16 |
| Arm length | S(m) | 3~12 | 3~12 | 3~12 | 3~12 | 3~12 | 3~12 |
| Lifting height | m | 3~10 | 3~10 | 3~10 | 3~10 | 3~10 | 3~10 |
| Lifting speed | m/min | 8 | 8 | 8 | 8 | 7 | 3.5 |
| Slewing angle | 180/270/ 360 degree | ||||||
| Work duty | A3 | A3 | A3 | A3 | A3 | A3 | |
FAQ
- Q1:What object to lift ? applications and working environment ?
- Q2:Lifting capacity:__ton?
- Q3:Lifting height (H):__ m ?
- Q4:Span (S):__m ?
- Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
- Q6:Control mode: pendant control, remote control or cabin control ?
- Q7:Power source: AC 3Phase __V / __Hz ?
