Product Introduction
Grab is one kind lifting spreader used to grab the dry or bulk cargo,which include the single rope grab,four rope grab and electric hydraulic grab.
Single rope grab
The single rope grab is used on cranes with only one lifting drum. It has a novel opening and closing mechanism and can be opened and closed freely during loading and unloading. It is suitable for underwater and land operations.

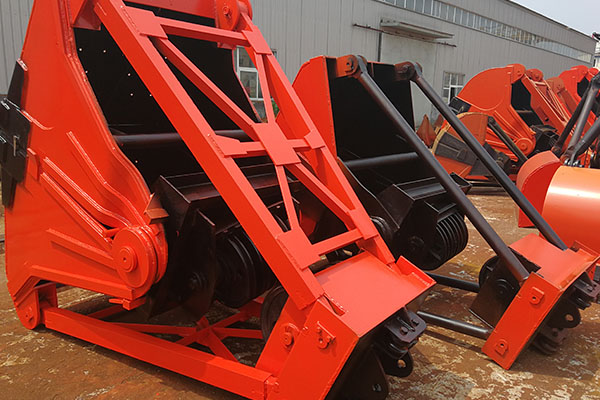

Four rope grab
The four-rope grab is mainly used in conjunction with bridge or gantry cranes to grab various accumulated loose materials for loading, unloading, transfer, and feeding operations. According to user needs, it can be designed with teeth, parallel girder opening, underwater operation and other forms.

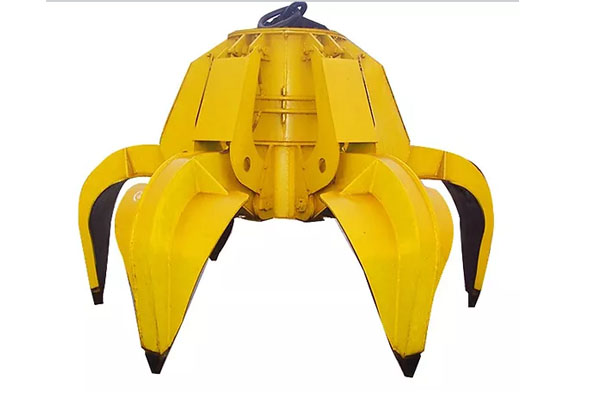

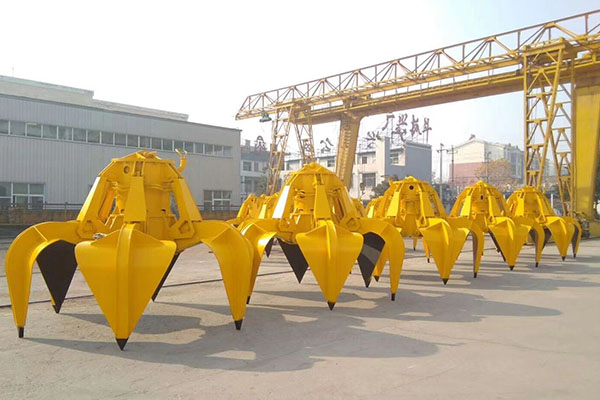

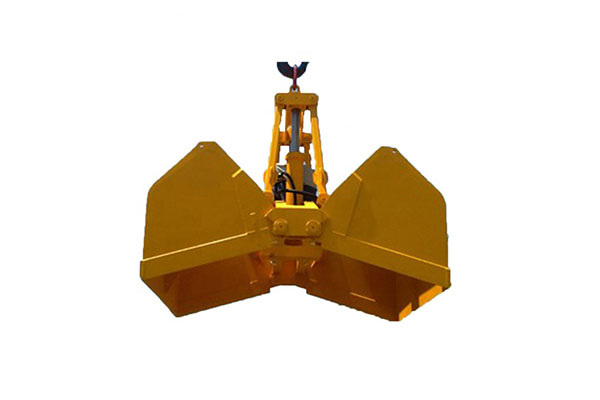

Electric hydraulic grab
The grab adopts electrical, hydraulic and mechanical technology, with high degree of automation, large grasping force, high efficiency and energy saving. It is an ideal loading and unloading tool for bulk materials such as pig iron, scrap steel and ore.
Product Advantages
- High production efficiency, good safety performance
- High degree of automation, can realize automatic control and semi-automatic control
- Long lifetime, low failure rate, can adapt to harsh working environment
- With different cranes, it can be applied to different occasions and grab different loose materials.
- Great gripping force, high catch rate, easy for the maintenance.
Technical Data
| Lifting capacity | Grab volume | Material volume | Grab dead weight | magnification | Wire rope Dia. | Pulley Dia. | Dimension | ||
| A | B | D | |||||||
| t | m3 | t/m3 | t | mm | mm | mm | |||
| 5 | 1.7 | 1.8 | 2.3 | 4 | 16 | 460 | 1560 | 2280 | 2220 |
| 2.5 | 1.25 | 2.2 | 4 | 1830 | 2470 | 2615 | |||
| 3 | 1 | 2.2 | 3 | 2060 | 2530 | 2750 | |||
| 10 | 4 | 1.6 | 3.8 | 4 | 22 | 575 | 2125 | 3085 | 3040 |
| 5.6 | 1 | 4.4 | 3 | 2420 | 3860 | 3450 | |||
| 6 | 0.63 | 4.2 | 3 | 3260 | 3620 | 4075 | |||
| 15 | 6.7 | 1.6 | 5.5 | 4 | 28 | 690 | 2510 | 3650 | 3585 |
| 8.3 | 1.25 | 6 | 4 | 2725 | 3810 | 3895 | |||
| 10 | 1 | 7.09 | 4 | 2980 | 4110 | 4100 | |||
| 20 | 7.8 | 1.6 | 8.2 | 4 | 28 | 710 | 2625 | 4010 | 3750 |
| 12 | 1 | 8.5 | 3 | 3260 | 4340 | 4122 | |||
| 25 | 10 | 1.6 | 9 | 4 | 36 | 820 | 2860 | 4180 | 4090 |
| 15 | 1 | 10.1 | 4 | 3454 | 4715 | 4825 | |||
Safety Protection
We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices
FAQ
- Q1:What object to lift ? applications and working environment ?
- Q2:Lifting capacity:__ton?
- Q3:Lifting height (H):__ m ?
- Q4:Span (S):__m ?
- Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
- Q6:Control mode: pendant control, remote control or cabin control ?
- Q7:Power source: AC 3Phase __V / __Hz ?
