Product Introduction

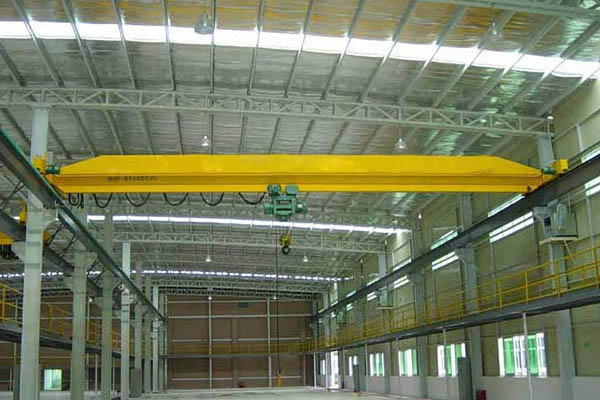

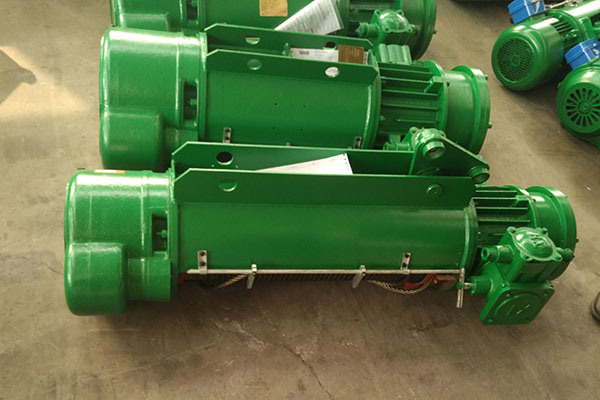

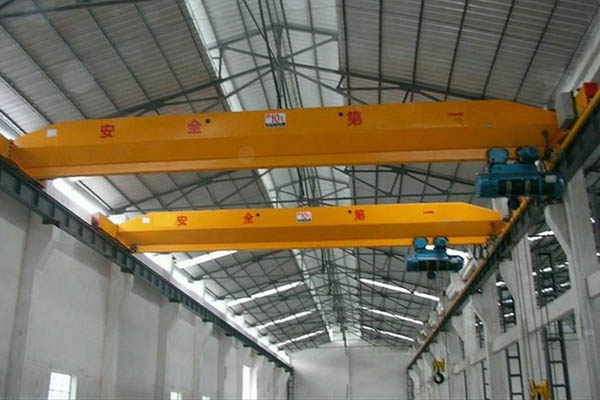

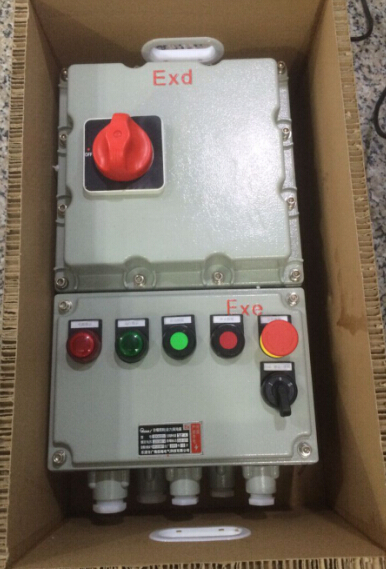

LB model explosion proof overhead crane is a kind of single girder crane specifically designed for hazardous lifting environments, usually equipped with HB explosion proof electric hoist. The motor and electrical devices of this crane are also explosion-proof type to ensure a high level of safety required for explosive atmospheres.

LB type explosion proof overhead crane is normally adaptable to explosive or flammable environments where the explosive-proof rating is lower than B or C class and ignition temperature of explosive gas is higher than T4 (135℃). This form of crane is suitable for hazardous jobsites including:

a:Under normal circumstances, it can be applied in jobsites that may generate explosive gas.

b:Under normal circumstances, it is suitable for places where the explosive gas cannot be generated or leaked in a short time.

Product Advantages

  • One of the most distinguished features of this bridge crane is strong explosion-proof performance and excellent safety.
  • The explosion proof overhead cranes are with compact structure and strong rigidity.
  • It has light dead weight, reasonable construction and delicate appearance.
  • This crane will significantly improve working efficiency and productivity of your plants in hazardous atmospheres.

Safety Protection

Lifting limit switch
Prevent the hook out of control when it has been lifted to the top position
Traveling limit switch
Stop the crane traveling smoothly when travel to the rail ends
Overload limiter
Prevent for the overload
Wire rope guide
Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

Technical Data

Lifting Capacityt1235101620
SpanS(m)7.5~28.57.5~28.57.5~28.57.5~28.57.5~28.57.5~28.57.5~28.5
Lifting heightH(m)3~183~183~183~183~183~183~18
Lifting speedm/min0.8/80.8/80.8/80.8/80.7/70.35/3.50.35/3.5
Trolley speedm/min20202020202020
Crane speedm/min20202020202020
Work duty A3~A4A3~A4A3~A4A3~A4A3~A4A3~A4A3~A4
Explosion-proof GradeExdⅡBT4 / ExdⅡCT4
Track type P24P24P24P24P24/P30P30/P38P38

FAQ

  • Q1:What object to lift ? applications and working environment ?
  • Q2:Lifting capacity:__ton?
  • Q3:Lifting height (H):__ m ?
  • Q4:Span (S):__m ?
  • Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
  • Q6:Control mode: pendant control, remote control or cabin control ?
  • Q7:Power source: AC 3Phase __V / __Hz ?
