Product Introduction

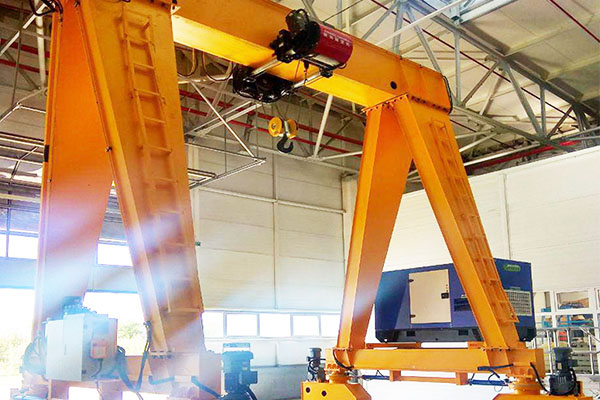

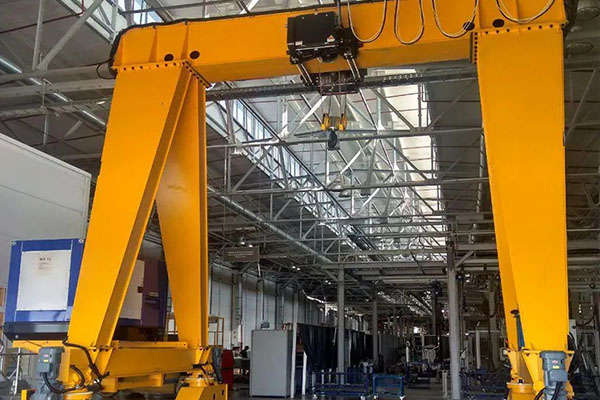

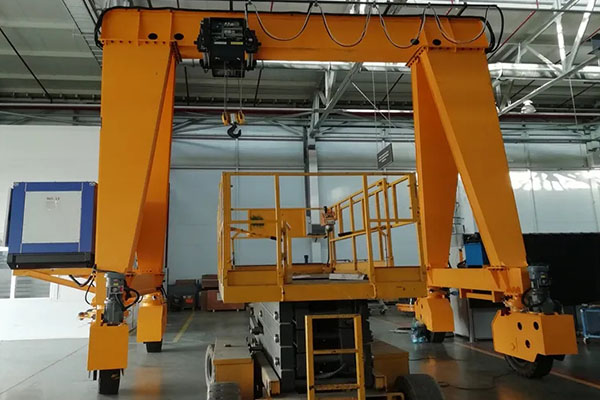

MHO model European Tire gantry Crane is equipped with high performance ABM or SEW brand engines, Schneider brand inverters and electrical components, variable speeds, box girder design, low headroom monorail hoist. Low noise, free maintenance, light weight, good-looking, most popular among new construction plant or workshops;
This type crane have features of European optimization design, light dead weight, small wheel load, and short size. Good driving capacity, double lifting speed, frequency control of trolley and crane, smooth and stable traveling and a variety of patterns meet customers' needs.
Product Advantages
- Single main girder, welding box structure, camber meeting national standard.
- Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52).
- Main welds joint adopts union melt welding, nondestructive inspection. After welding, main girder is through shot blasting treatment, gets Sa2.5 class, and eliminate welding stress.
- Reasonable layout, simple maintenance and insulation class IP55 for electric control box Flat cable, galvanized track and cable pulley for trolley traveling power supply, smooth traveling.
- The trolley and crane adopt three-trinity driving mechanism, frequency stepless speed regulating, hard-tooth surface, disc brake.
- Crane driving IP55, F class insulation, contact continuity reaches 40% ED. Epoxy zin-rich paint, a long service life, beautiful outlook and lustre.
Safety Protection
We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices
Technical Data
| Lifting Capacity | t | 3.2 | 5 | 10 | 16 | 20 |
| Span | S(m) | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 |
| Lifting height | m | 5~10 | 5~10 | 5~10 | 5~10 | 5~10 |
| Lifting speed | m/min | 0.8/5 | 0.8/5 | 0.8/5 | 0.6/4 | 0.6/4 |
| Trolley speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 |
| Crane speed | m/min | 0~10 | 0~10 | 0~10 | 0~10 | 1~10 |
| Work duty | A5 | A5 | A5 | A5 | A5 |
FAQ
- Q1:What object to lift ? applications and working environment ?
- Q2:Lifting capacity:__ton?
- Q3:Lifting height (H):__ m ?
- Q4:Span (S):__m ?
- Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
- Q6:Control mode: pendant control, remote control or cabin control ?
- Q7:Power source: AC 3Phase __V / __Hz ?
