Product Introduction

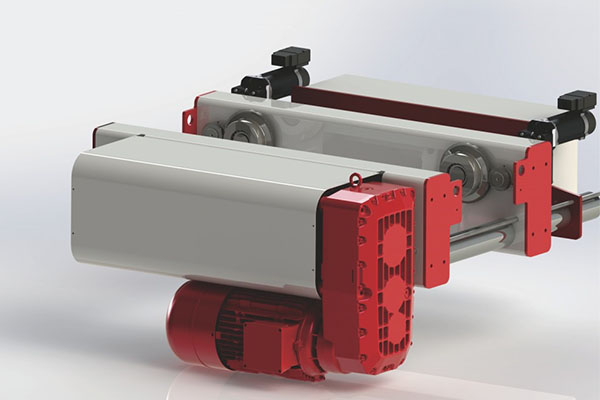

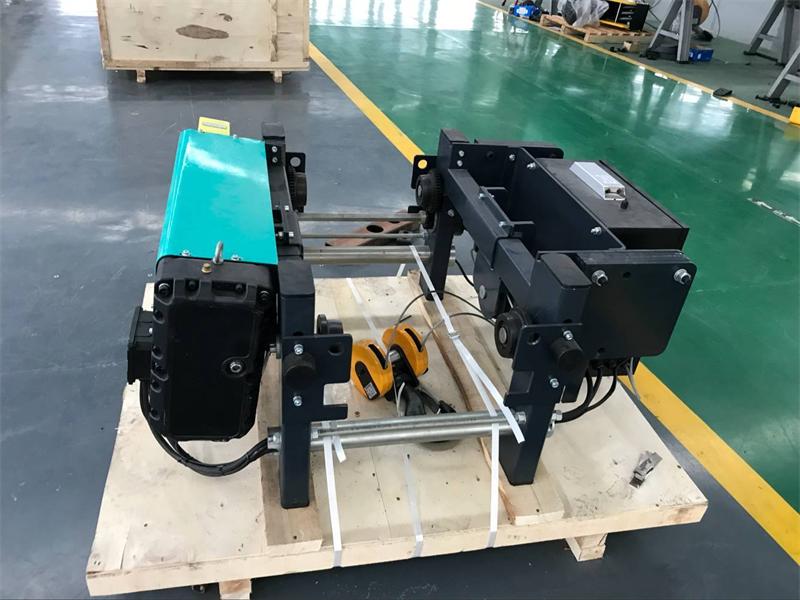

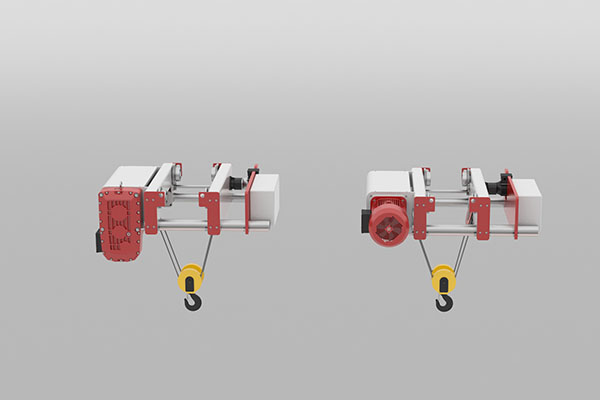

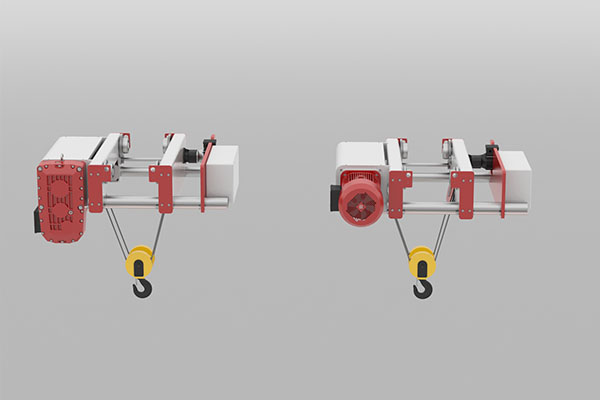

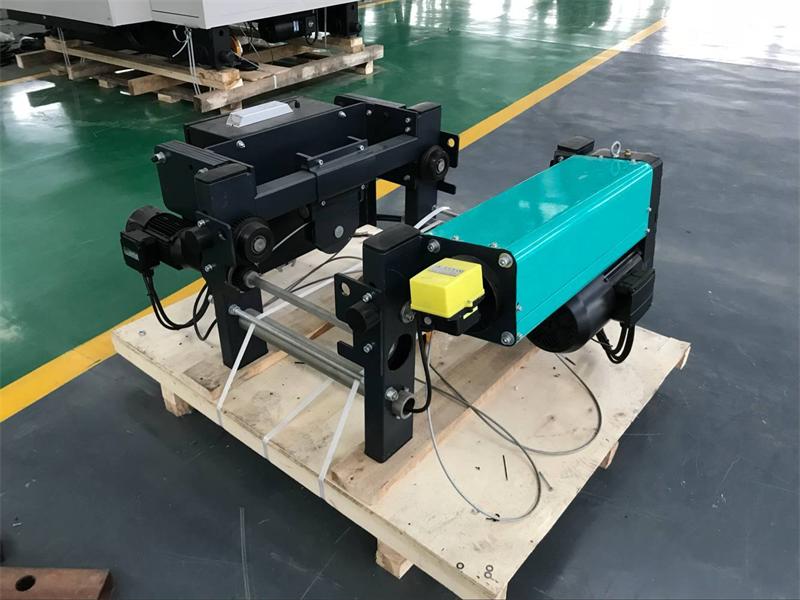

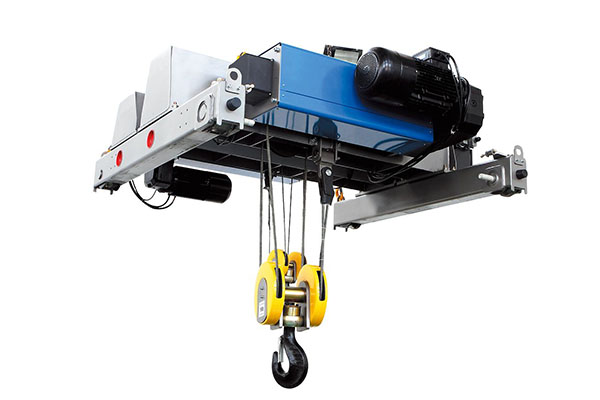

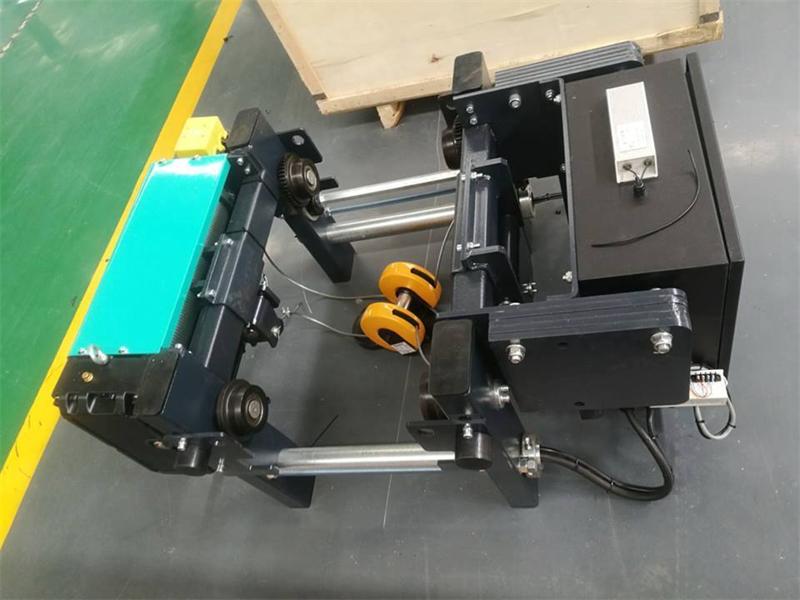

European Style Monorail Hoist is widely used in machining workshop, product storage and dispatch warehouse, plastic injection molds changing, finished steel product industries;European wire rope electric hoist is a newly developed material handling equipment with advanced design technology according to the FEM standards and other regulations.The new serial of wire rope electric hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products. The lifting capacity of the European wire rope electric hoist is 1 to 20 tons and the working class is M5 and M6. Customized European wire rope electric hoist are available. And the main parameters are presented for your reference.
Product Advantages

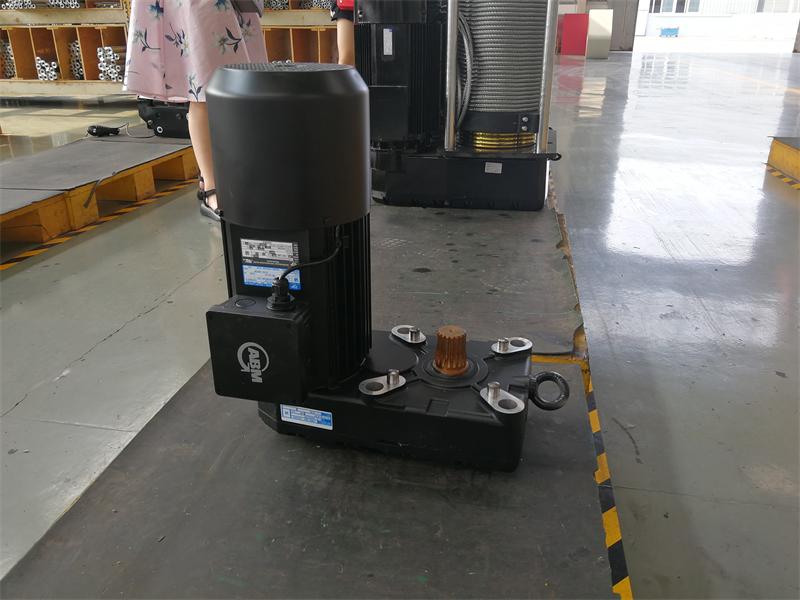

- ND model European Monorail Hoist is equipped with high performance engines, ABM brand, Schneider brand electrical components, variable speeds and VFD control.
- Low headroom, low noise, light weight, good-looking, most popular among new construction plant or workshops.
- Maintenance Free for European Style Electric Hoist, Free replacement for 10 years.
- Equipped with overload limiter, and real-time load value is displayed in the screen to prompt the operator to prevent overloading.
- Perform a self-test before starting, including the power supply voltage level, default phase, button zero status and validity of each safety device.
Safety Protection
We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices
Technical Data
Technical Parameter of ND electric wire rope hoist
| Capacity | t | 3 | 5 | 10 | 16 | 20 |
| Lifting height | m | 6~30 | 6~30 | 6~30 | 6~30 | 6~30 |
| Lifting speed | m/min | 0.8/5 | 0.8/5 | 0.8/5 | 0.6/4 | 0.6/4 |
| Traveling speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 |
| Work duty | A5 | A5 | A5 | A5 | A5 | |
| Main girder type | 250-350 | 300-450 | 300-450 | 300-500 | 300-500 |
FAQ
- Q1:What object to lift ? applications and working environment ?
- Q2:Lifting capacity:__ton?
- Q3:Lifting height (H):__ m ?
- Q4:Span (S):__m ?
- Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
- Q6:Control mode: pendant control, remote control or cabin control ?
- Q7:Power source: AC 3Phase __V / __Hz ?
