Product Introduction

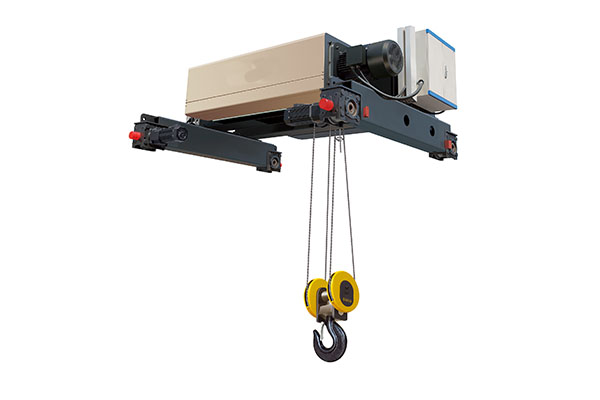

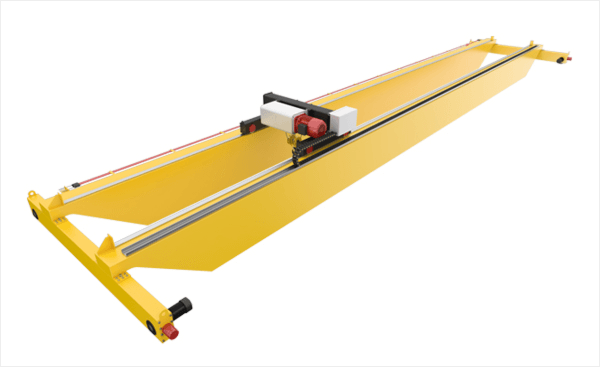

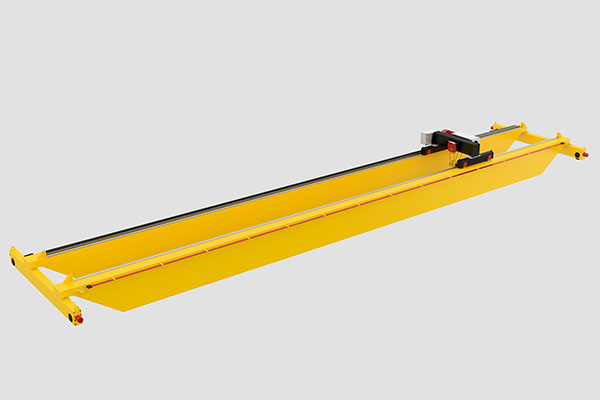

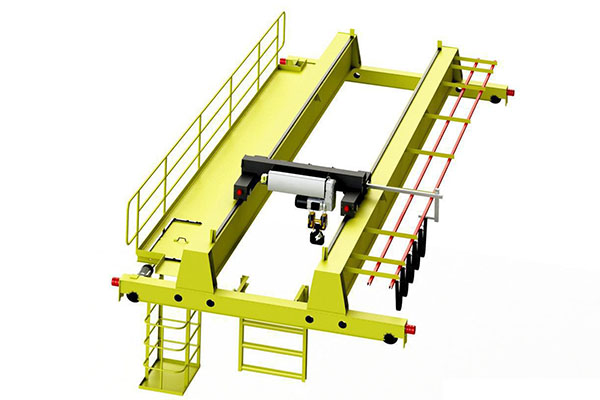

LHO model European Double Girder Overhead Crane is equipped with high performance ABM or SEW brand engines, Schneider brand inverters and electrical components, variable speeds, box girder design, electric wire rope hoist trolley. Low noise, free maintenance, light weight, good-looking, most popular among new construction plant or workshops;
It is European optimization design, light dead weight, small wheel load, and short size. Good driving capacity, double lifting speed, frequency control of trolley and crane, smooth and stable traveling and a variety of patterns meet customers' needs.
Product Advantages
- The shell is welded
- Germany ABM brand or SEW brand motor; Schneider electrics & inverter
- Double main girder, welding box structure, camber meeting national standard.
- Main welds joint adopts union melt welding, nondestructive inspection. After welding, main girder is through shot blasting treatment, gets Sa2.5 class, and eliminate welding stress.

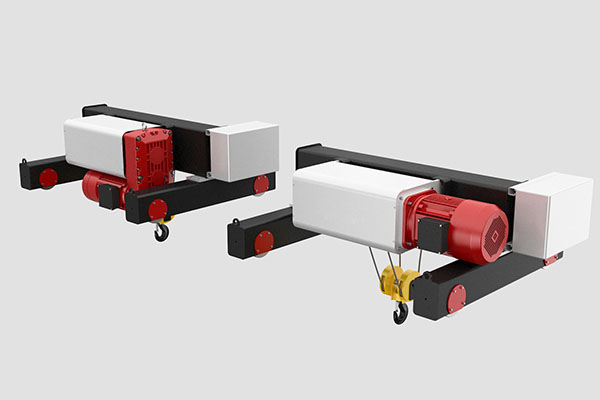

- Electric hoist connection all with the high strength bolts and easy for the maintenance.
- Reasonable layout, simple maintenance and insulation class IP55 for electric control box Flat cable, galvanized track and cable pulley for trolley traveling power supply, smooth traveling.
- Crane driving IP55, F class insulation, contact continuity reaches 40% ED. Epoxy zin-rich paint, a long service life, beautiful outlook and luster.
Safety Protection
We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices
Technical Data
| Lifting capacity | t | 5 | 10 | 16 | 20 | 32 |
| Span | S(m) | 7.5~31.5 | 7.5~31.5 | 7.5~31.5 | 7.5~31.5 | 7.5~31.5 |
| Lifting height | m | 6~30 | 6~30 | 6~30 | 6~30 | 6~30 |
| Track type | m/min | 0.8/8 | 0.7/7 | 0.35/3.5 | 0.35/3.5 | 0.2/2 |
| Trolley speed | m/min | 20 | 20 | 20 | 20 | 20 |
| Crane speed | m/min | 20/40 | 20/40 | 20/40 | 20/40 | 20/40 |
| Work duty | A4 | A4 | A4 | A4 | A4 | |
| Track type | P24 | P30/P38 | P38 | P38 | P43 |
FAQ
- Q1:What object to lift ? applications and working environment ?
- Q2:Lifting capacity:__ton?
- Q3:Lifting height (H):__ m ?
- Q4:Span (S):__m ?
- Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
- Q6:Control mode: pendant control, remote control or cabin control ?
- Q7:Power source: AC 3Phase __V / __Hz ?
