Product Introduction

The winch completes the traction drive with human power or mechanical power driving a reel. It can vertically lift or horizontally and obliquely draw heavy weights.

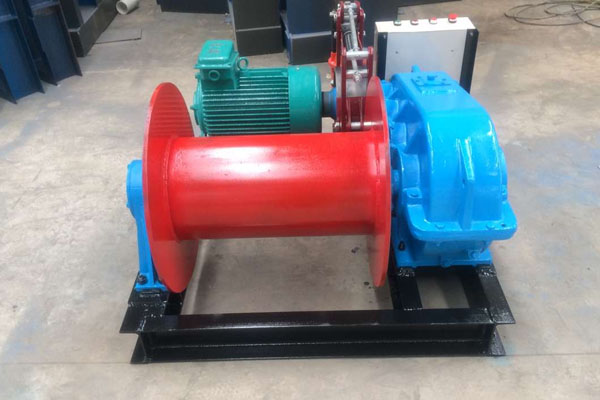

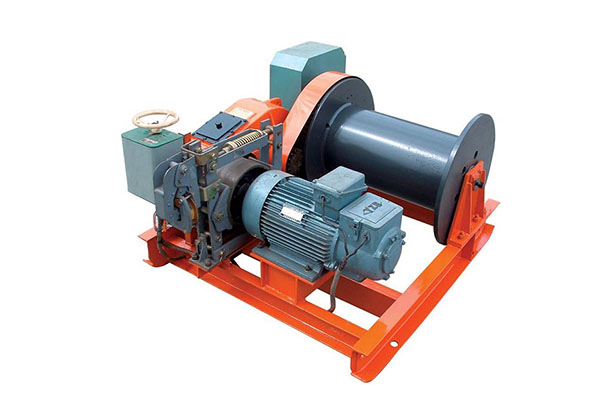

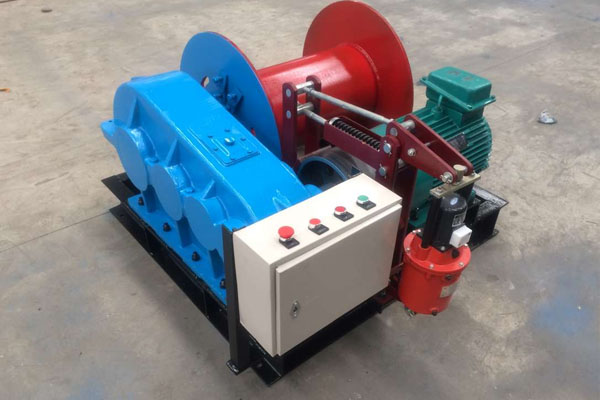

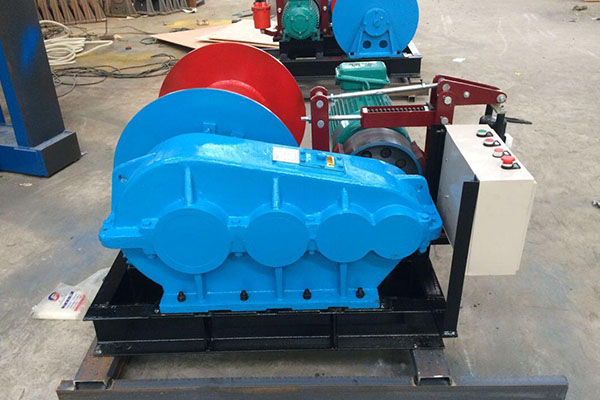

An electric winch consists of a motor, the coupling, the brake, the gear bos, and the reel which are altogether installed on the machine frame. For high lifting height, heavy load and unload as well as frequent work, the winch has a good speed regulation making a empty hook swiftly down, and for installed or sensitive material, the winch can adopt a small speed.

Product Advantages

  • Generality, compact structure with small volume.
  • Light dead weight, large lifting capacity.
  • Convenient to move.
  • Road, bridge and building construction.
  • Used on cranes as the lifting mechanism.
  • Used in or outside different kinds of mines for pulling and lifting.
  • Used on boat or harbor for pulling and lifting.

Safety Protection

Lifting limit switch
Prevent the hook out of control when it has been lifted to the top position
Traveling limit switch
Stop the crane traveling smoothly when travel to the rail ends
Overload limiter
Prevent for the overload
Wire rope guide
Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping

We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices

FAQ

  • Q1:What object to lift ? applications and working environment ?
  • Q2:Lifting capacity:__ton?
  • Q3:Lifting height (H):__ m ?
  • Q4:Span (S):__m ?
  • Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
  • Q6:Control mode: pendant control, remote control or cabin control ?
  • Q7:Power source: AC 3Phase __V / __Hz ?

Get In Touch

Please feel free to leave a message. We will reply you in 24 hours.

CUSTOM DESIGNED CRANES JUST FOR YOU.

We design cranes that meet your needs. Whether you need to increase safety, maximize production capacity or reliability, or reduce costs, we deliver.
