Product parts
Main mechanical parts: Shell, Side magnetic braking device, limit switch, chain, hook, support frame, transformer, electromagnetic contactor, control switch, inverse phases sequence protecting device.
Product Introduction
Electric chain hoist is a small light lifting equipment, widely used to lift, loading and unloading, repair equipment, hoisting goods, install on a suspended I-steel, curve track, jib crane rail and fixed lifting hoisting heavy weights.

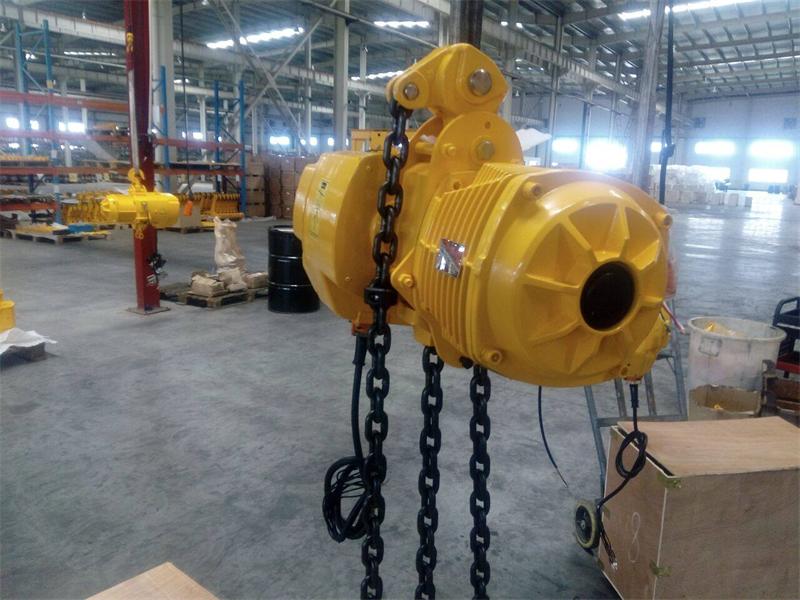

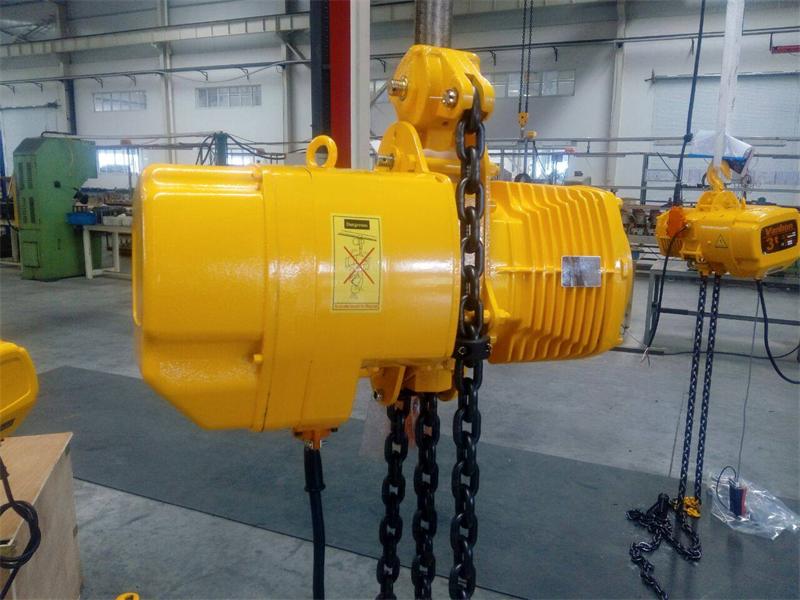

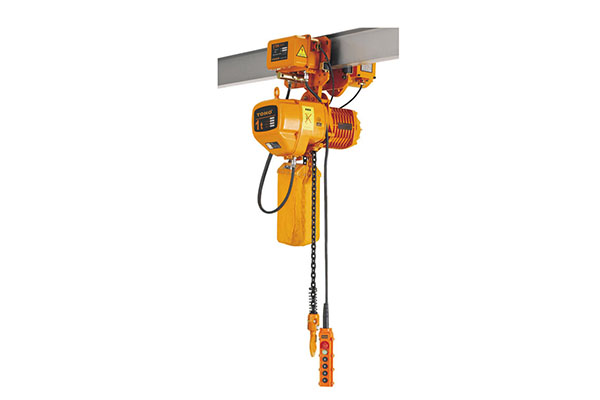

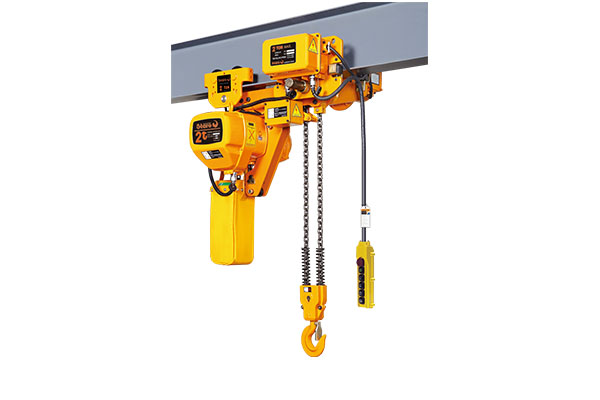

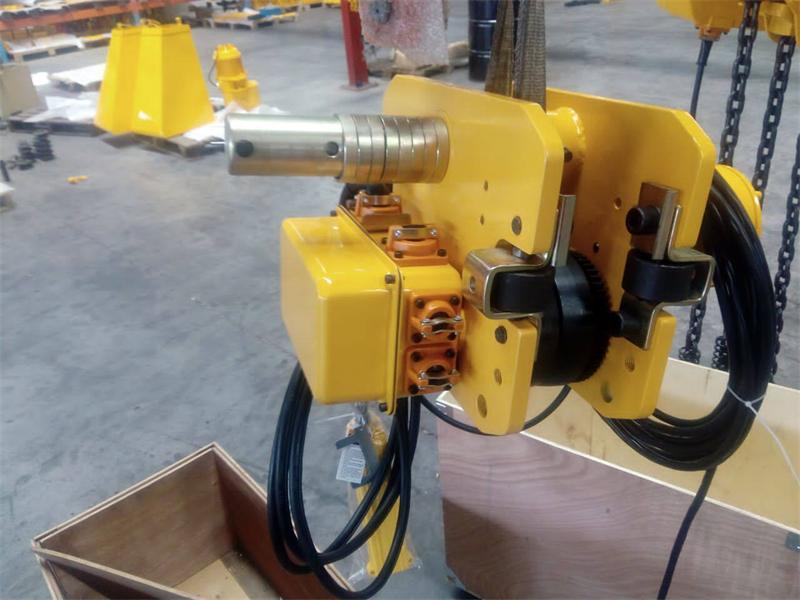

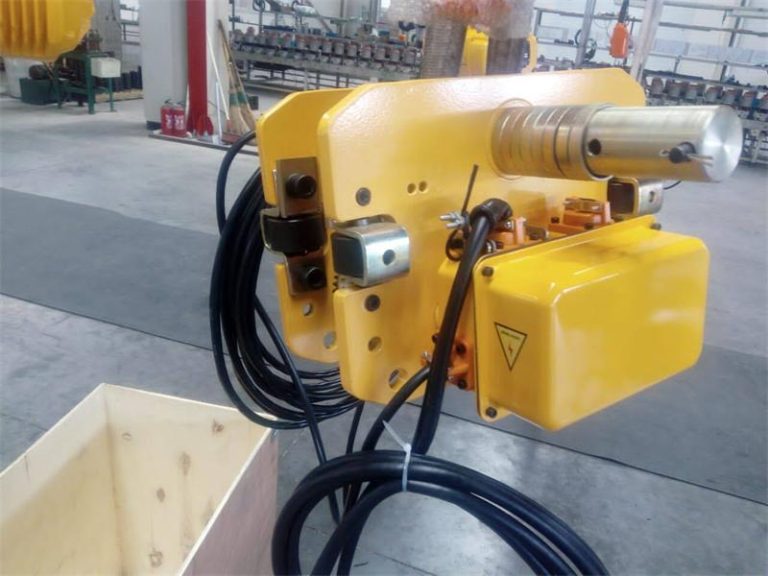

Electric chain hoist can be classified into electric chain hoist with electric trolley, electric chain hoist with manual trolley, suspend hook electric chain hoist ,low headroom electric chain hoist.
Product Advantages
- The he body of electric chain hoist is made from high strength tensile shell or it can be die casting aluminum case based on your requirements. The molding process thin-walled precision manufacturing made the body small size, low weight, high strength.
- Separated speed adjusting system is adopted by our electric chain hoist. And the level 2 coaxial transmission speed gear mechanism uses long services oil bath lubrication system.
- Electric chain hoist powder metallurgy clutch is adopted for overload protection.
- Easy operation, accurate lifting steady operation.
- The brake disc adopts dc magnetic field, braking torque, which is stable, rapid and low in noise, etc.
Safety Protection
We have the short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection devices
Technical Data
| Capacity | t | 0.5 | 1 | 2 | 3 | 5 | 10 | 15 | 20 |
| Lifting height | m | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 | 3~30 |
| Lifting speed | m/min | 6.8 6.9/2.3 | 6.6 6.9/2.3 | 3.3 3.3/1.1 | 4.4 4.5/1.5 | 2.7 2.7/0.9 | 2.7 2.7/0.9 | 1.8 1.8/0.6 | 1.5 1.5/0.6 |
| Traveling speed | m/min | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 |
| Chain Falls | 1 | 1 | 2 | 2 | 2 | 4 | 6 | 8 | |
| Work duty | A3 | A3 | A3 | A3 | A3 | A3 | A3 | A3 | |
| Track type | mm | 58-153 | 58-153 | 82-178 | 100-178 | 100-178 | 150-220 | 150-220 | 150-220 |
FAQ
- Q1:What object to lift ? applications and working environment ?
- Q2:Lifting capacity:__ton?
- Q3:Lifting height (H):__ m ?
- Q4:Span (S):__m ?
- Q5:Travel bay distance:__m ? do you need us offer rails and runway beams ?
- Q6:Control mode: pendant control, remote control or cabin control ?
- Q7:Power source: AC 3Phase __V / __Hz ?
